Non Pressurized models

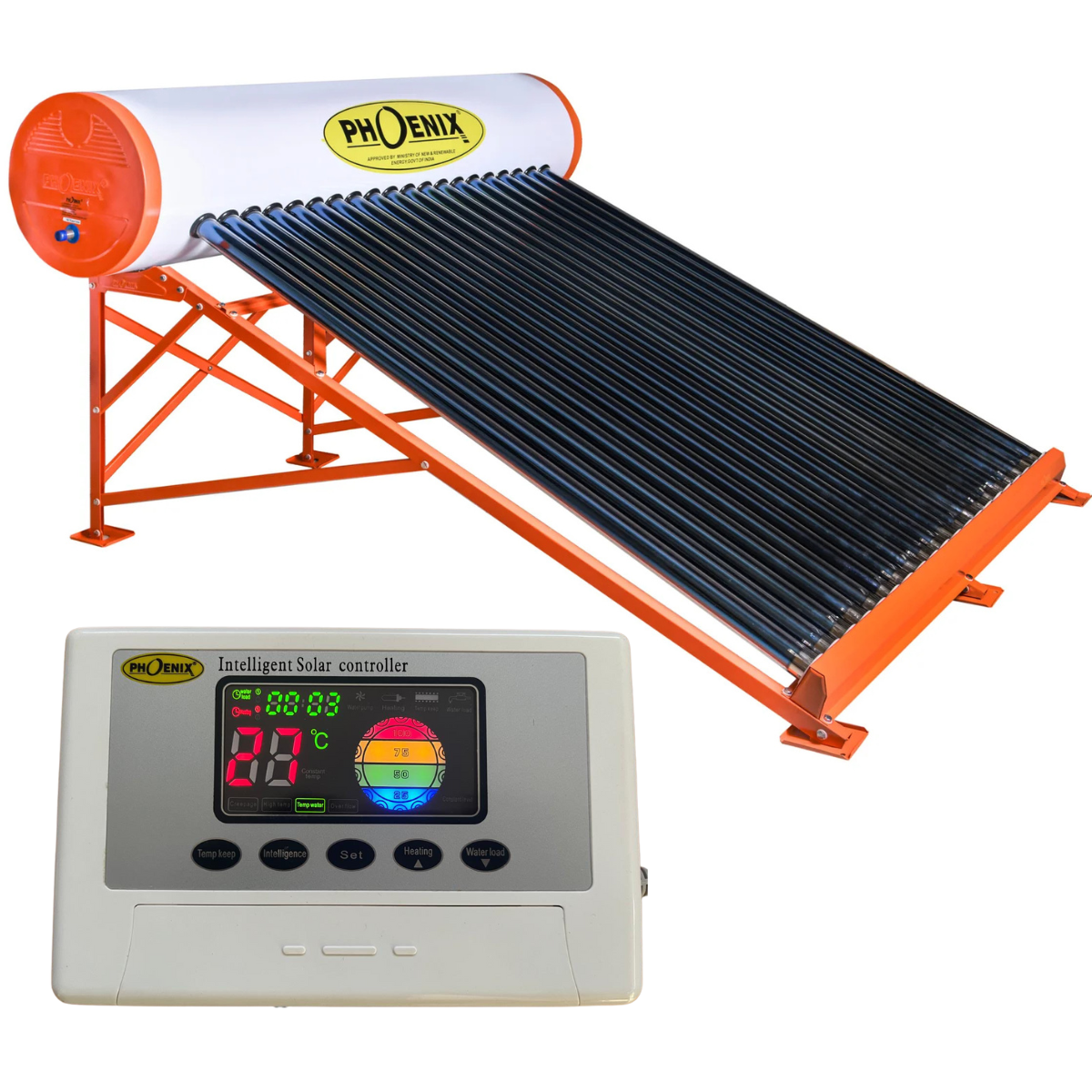

Phoenix Standard Model
SOLAR WATER HEATER 100/150/200/250/300 LPD
- Inner of Water Tank : 0.50mm Thick Stainless Steel 316 L grade.
- Outer of Water Tank : 0.35 mm Tick Stainless Steel 202 grade
- Bracket (Water Tank Stand) : Aluminum Alloy Bracket with 2.5mm Thickness.
- Insulation : PUF 50mm
- Bracket (Water Tank Stand) : Pre-Coated GI Material, 1.2mm thickness.
- Tube Size- Three Layer Blue Tube in 58mm x 1800mm size
- Connections - Inlet (SS304) - 1 nos - 3/4" Outlet (SS304) - 1 nos - 3/4"
- Electric Heater - 1.25"
- Warranty : 5 years for TDS up to 300ppm (Soft water)

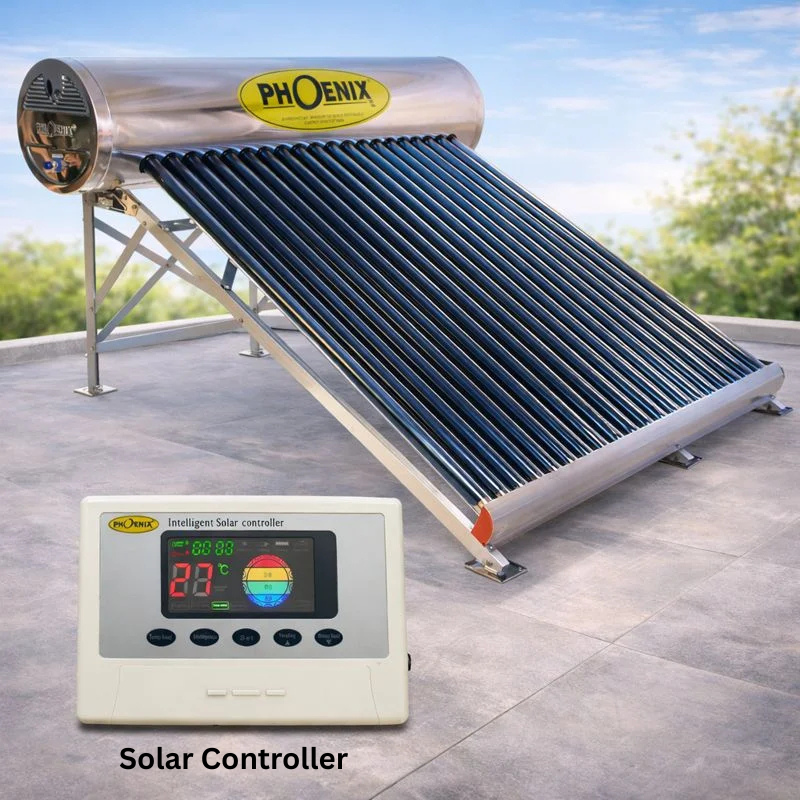

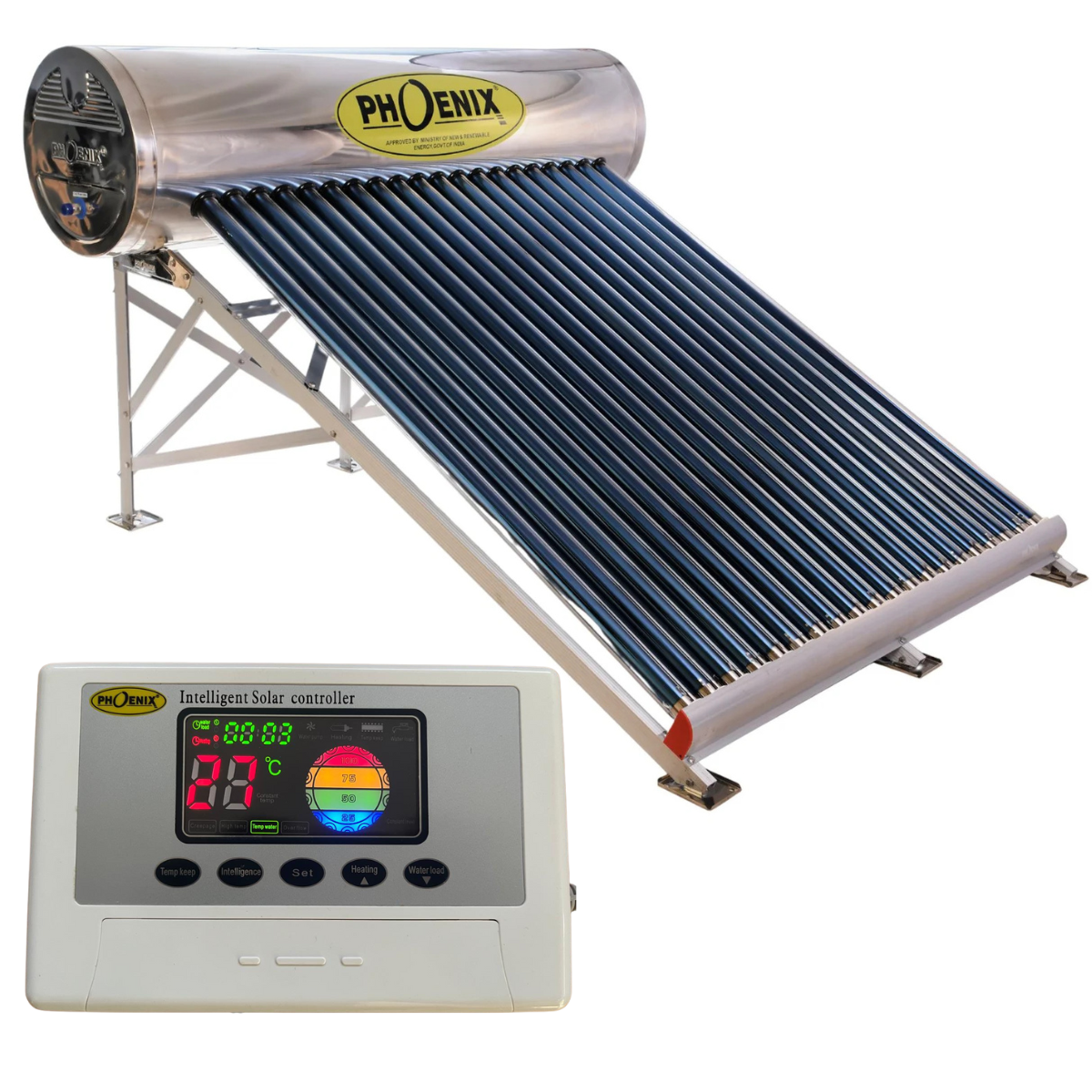

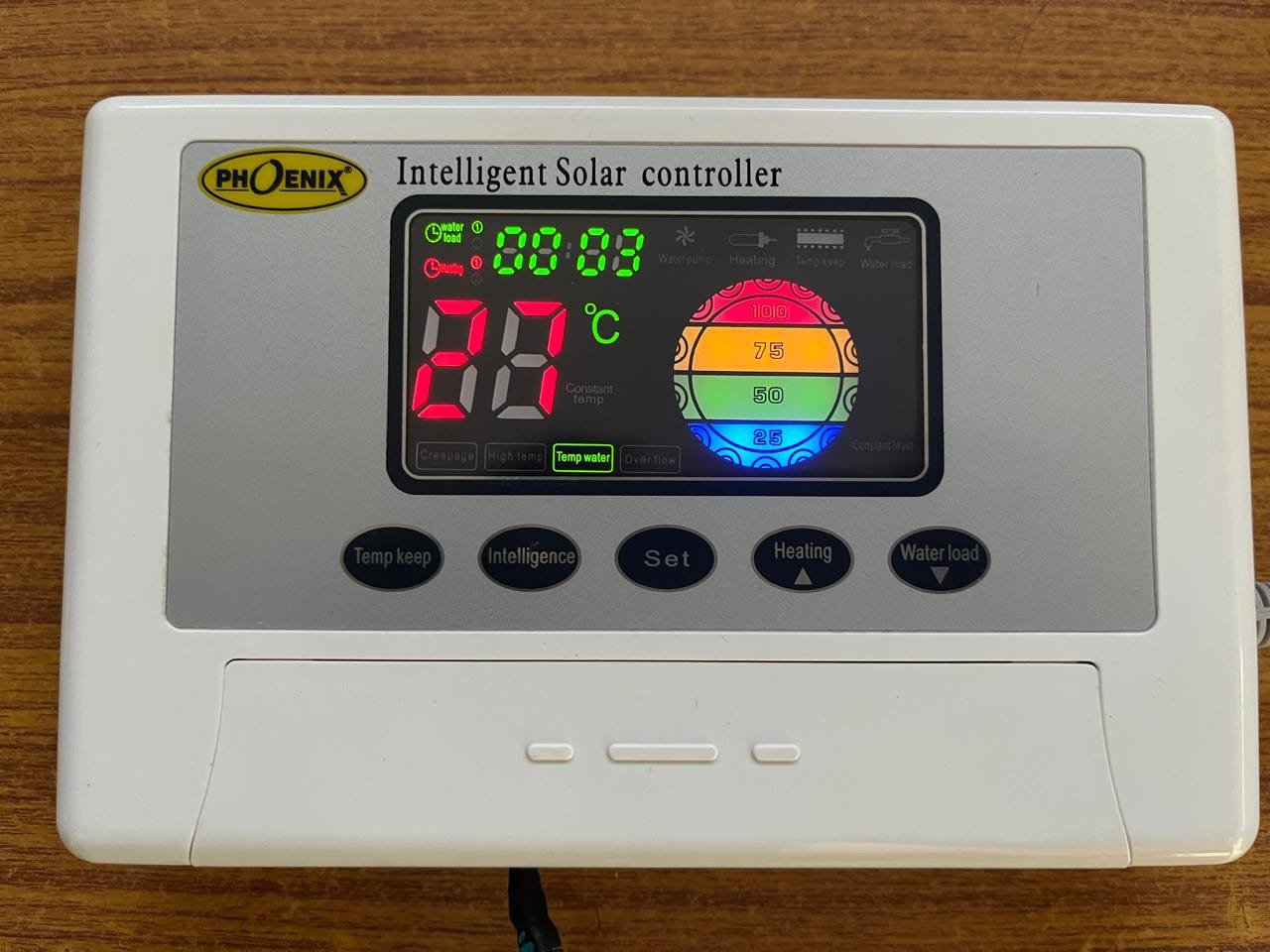

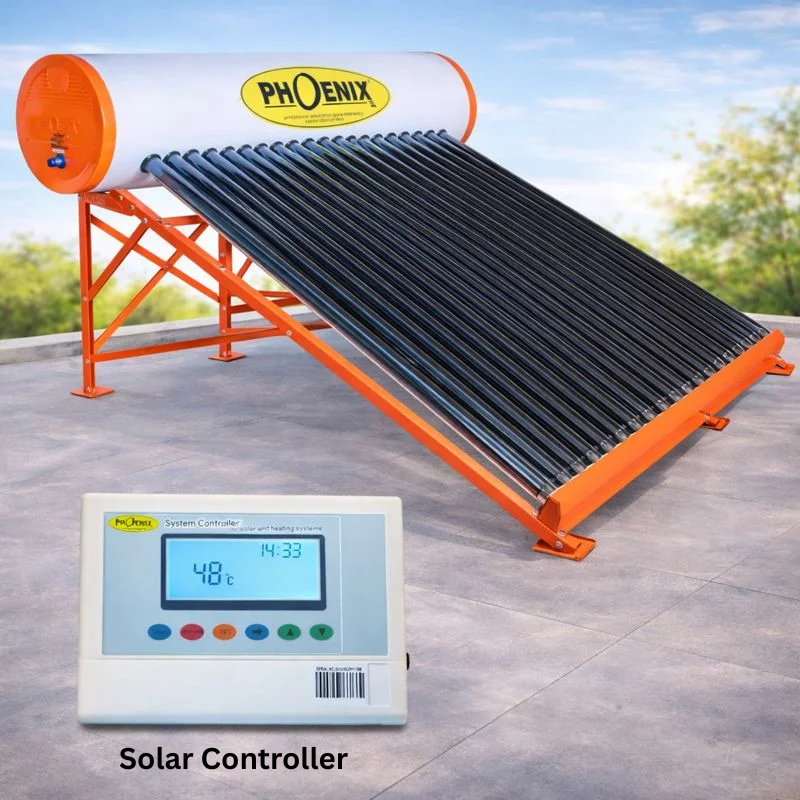

- System with Phoenix Intelligent Solar Controller.

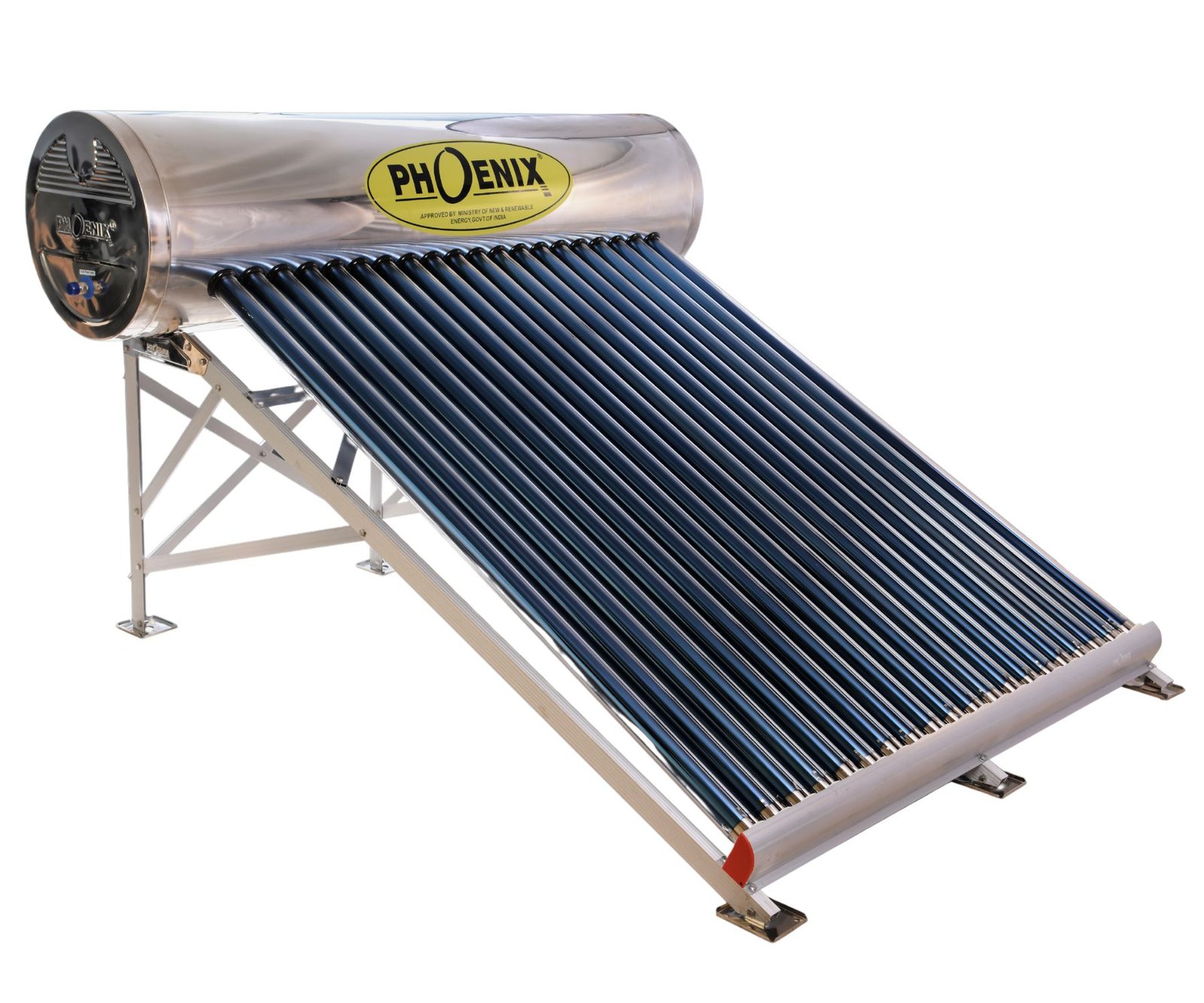

Phoenix Premium Model
SOLAR WATER HEATER 100/150/200/250/300 LPD
- Inner of Water Tank : 0.50mm Thick Stainless Steel 316 L grade.
- Outer of Water Tank : 0.35mm Thick Stainless Steel with SS304 Material.
- Bracket (Water Tank Stand) : Aluminum Alloy Bracket with 2.5mm Thickness.
- Insulation : PUF 50mm
- Vacuum Tubes : Three Layers Blue Tube in 58mm X 1800mm size.
- Provision of Electrical Heater and Inlet & Outlet with 3/4 Male BSP threading is provided.
- Warranty : 5 years for TDS up to 400ppm (Soft water).
- System Operational Life : 20 Years.
- System with Phoenix Intelligent Solar Controller.

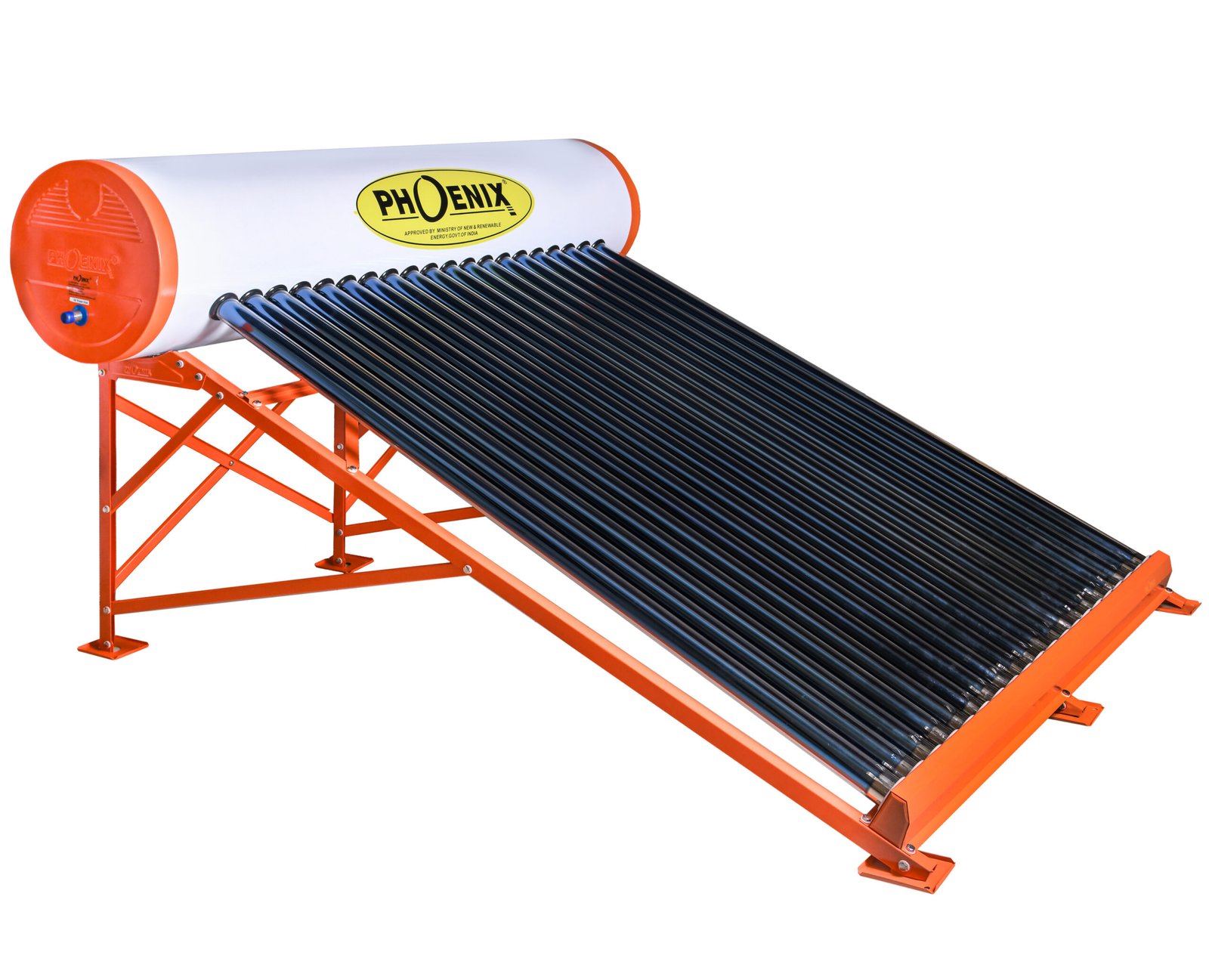

Phoenix Platinum Model
SOLAR WATER HEATER 125/175/225/275/325 LPD PC
- Inner of Water Tank : 0.60mm Thick, Side-dish : 1mm, Stainless Steel 316 L grade.
- Outer of Water Tank : 0.35mm Thick Pre-coated GI.
- Bracket (Water Tank Stand) : Pre-Coated GI Material, 1.5mm thickness.
- Insulation : PUF 50mm
- Vacuum Tubes : Three Layers Blue Tube in 58mm X 1800mm size.
- Provision of Electrical Heater and Inlet & Outlet with 3/4 Male BSP threading is provided.
- Warranty : 10 years for TDS up to 1000ppm (Hard water).
- System Operational Life : 15 Years.

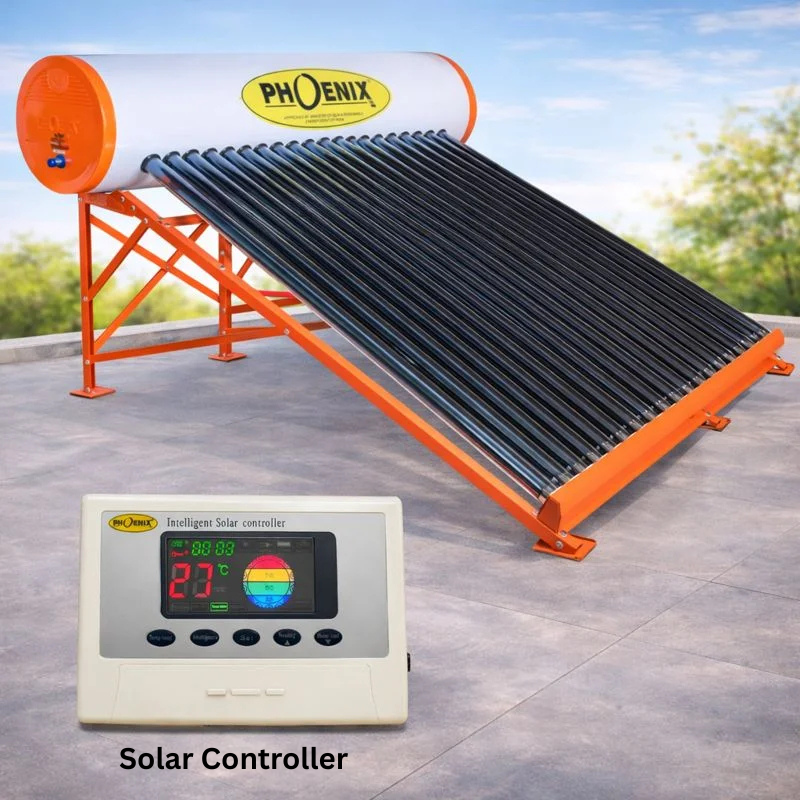

- System with Phoenix Intelligent Solar Controller.
Phoenix Diamond Model
SOLAR WATER HEATER 125/175/225/275/325 LPD
- Inner of Water Tank : 0.60mm Thick, Side-dish : 1mm, Stainless Steel 316 L grade.
- Outer of Water Tank : 0.35mm Thick Stainless Steel with SS304 Material.
- Bracke (Water Tank Stand) : Aluminum Alloy Bracket with 2.5mm Thickness.
- Insulation : PUF 50mm
- Vacuum Tubes : Three Layers Blue Tube in 58mm X 1800mm size.
- Provision of Electrical Heater and Inlet & Outlet with 3/4 Male BSP threading is provided.
- Warranty : 10 years for TDS up to 1000ppm (Hard water).
- System Operational Life : 20 Years.
- System with Phoenix Intelligent Solar Controller.
Phoenix Diamond Model (GL)
Capacity - 100/150/200/250/300
- Inner of Water Tank - Shell - MS CRC , Thickness- 1.6mm. Inner side dish - thickness 2mm. with Blue Daimond glassline coating.
- Outer of Tank - Stainless Steel 202, Thickness -0.4mm.
- Insulation - PUF 50mm.
- Bracket (Water Tank Stand) : Aluminum Alloy, 2.5mm thick.
- Tube Size- 58mm x 1800mm
- Connections - Inlet (SS304) - 1 nos - 3/4" Outlet (SS304) - 1 nos - 3/4"
- Electric Heater - 1.25"
- Warranty : 20 years for TDS up to 4000ppm (Hard water)
- System with Phoenix Intelligent Solar Controller.

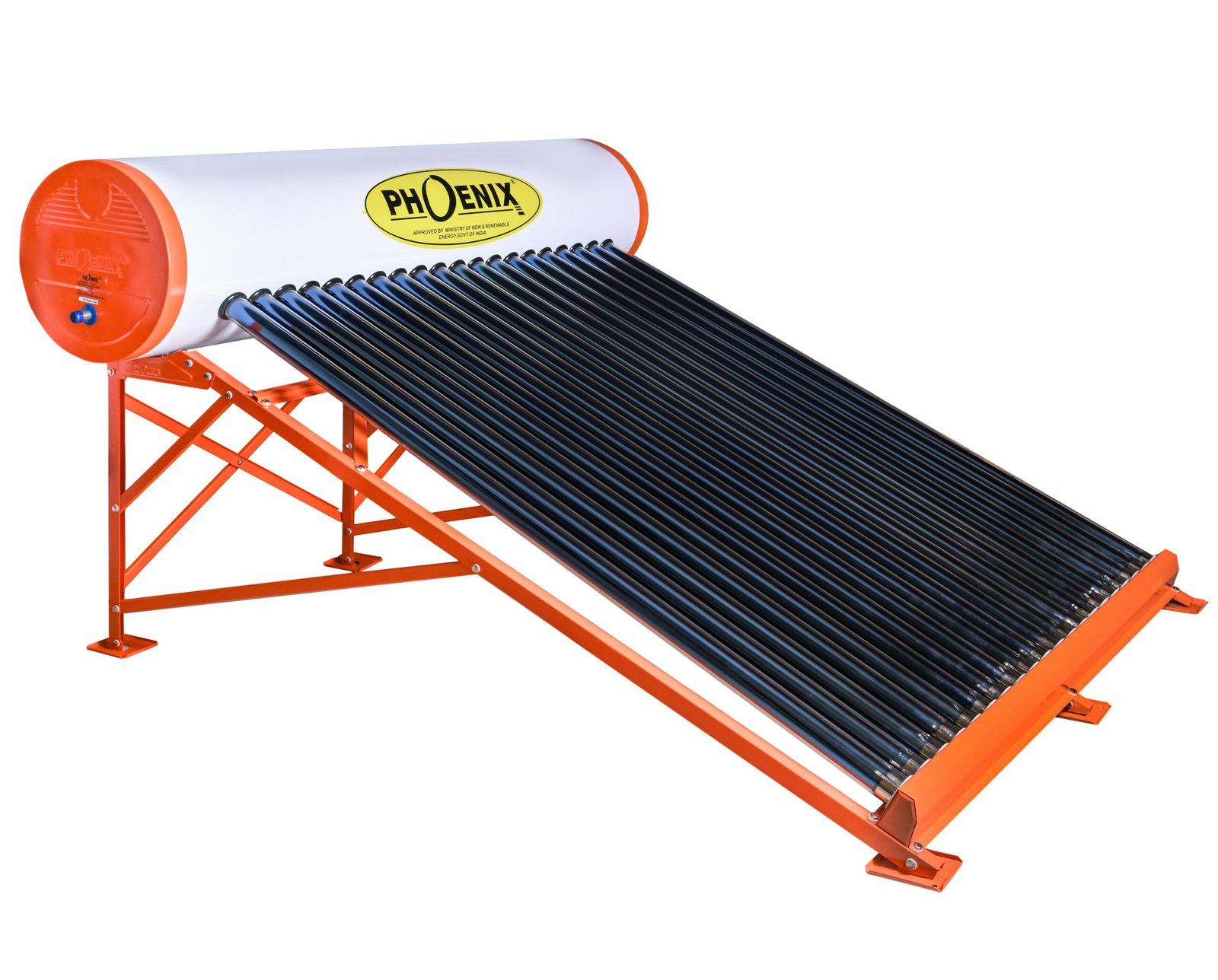

Phoenix Commercial/Industrial Model (GI)
GI SYSTEMS 500/600/700 LPD
- Inner of Water Tank: 2mm thick, GI with epoxy coating, side dish: 2.5mm.
- Outer of Tank: 0.4mm thick, pre-coated GI.
- Insulation: PUF, Thickness: 50mm.
- Stand of Water Tank: 1.6mm thick with powder coating.
- Vacuum Tubes: Three Layers Blue Tube, Size: 58mm x 2100mm.
- Provision of Electrical Heater: 1.25" Female BSP threading provided.
- Warranty: 5 Years for Hard Water.
- System Operational Life: 8 Years.
