Pressurized models

Phoenix Pressurized Model (SS)

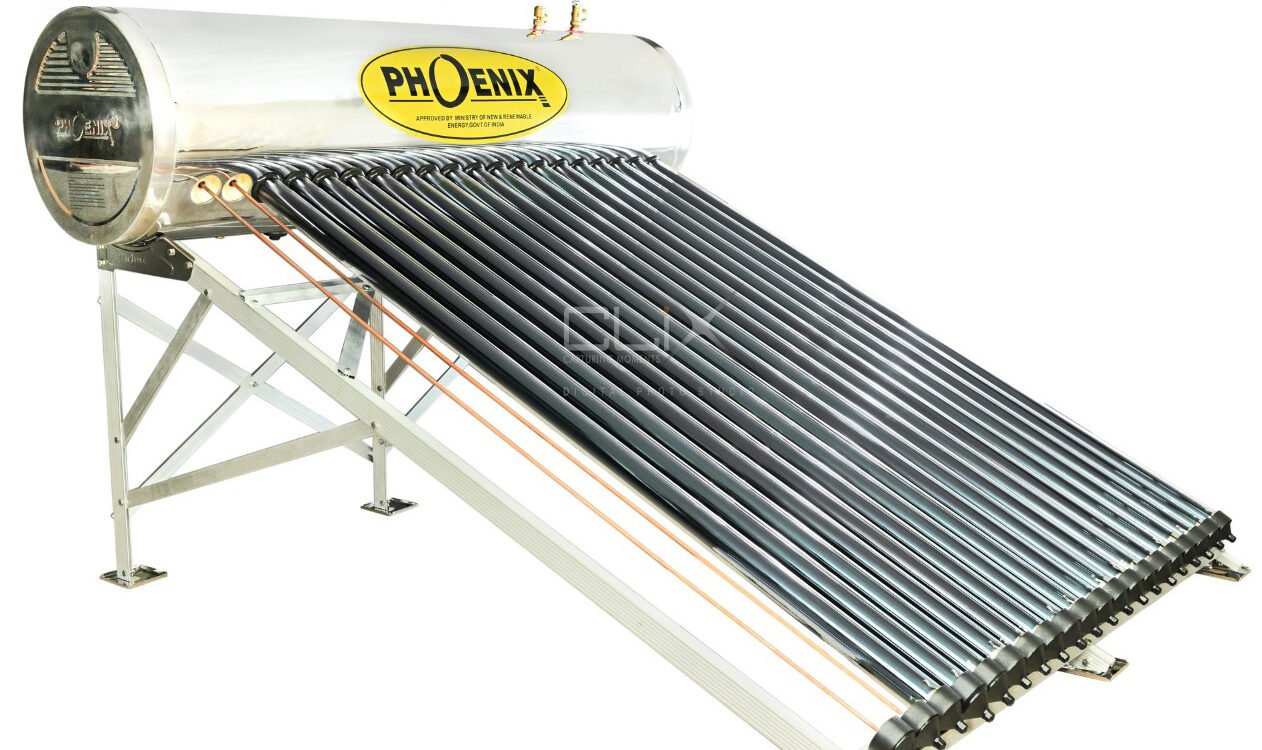

PRESSURISED SOLAR WATER HEATER 200/300 LPD (SS)

  • Inner of Water Tank : Stainless Steel 304-2B grade, Thickness : 1.2mm.
  • Outer Material : Thick Stainless Steel SS304 Material, Thickness : 0.35mm.
  • Tube Type : Three target copper Heat Pipe Vacuum Tube, Size : 58 X 1800mm.
  • Bracket (Water tank stand): Aluminum Alloy Bracket, Thickness : 2.5mm with 32° angle.
  • Insulation Material : PUF, Thickness : 50mm.
  • Inlet & Outlet : Inlet from Left Bottom & Outlet from Right Top with 3/4 Male BSP threading is provided.
  • Electrical Heater & Anode : Provision at left bottom of tank with 1" Female BSP Threading.
  • Accessories : One Temperature and Pressure (TP) valve.
  • Max TDS and Pressure Limit : up to 500 PPM.
  • Latest Copper Heat Pipe Based Vacuum Tubes.
  • Pressure : up to 6 bar.
  • Low Maintenance.
  • Warranty : 5 Years.
  • System Operational Life : 20 Years.

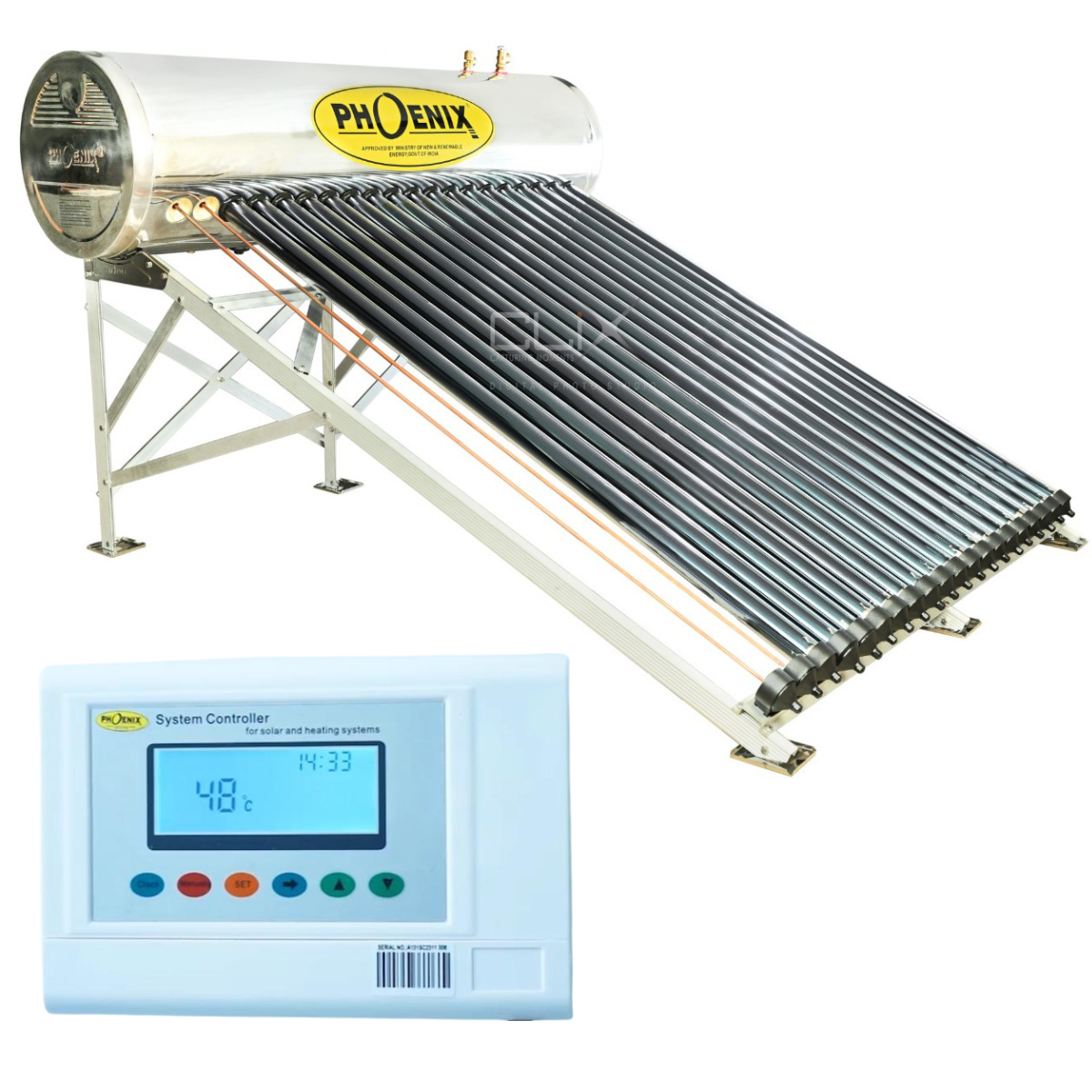

  • System with Phoenix Intelligent Solar Controller.
